Grounding Technique of Multilayer Board, How to Produce High Quality PCB

PCB manufacturers, PCB designers and PCBA manufacturers will explain the grounding skills of multilayer boards and how to produce high-quality PCBs

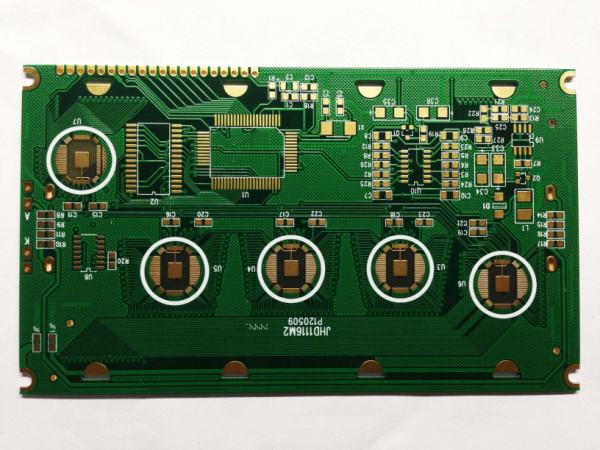

Grounding mode of multilayer PCB (I)

In high-density and high-frequency applICations, the four layer board is usually used, which is more than 20DB better than the two-layer board in terms of electromagnetic compatibility (EMC). Under the condition of four layers of boards, a complete ground plane and a complete power plane can often be used. Under this condition, only the circuit ground wires divided into several groups need to be connected to the ground plane, and the working noise needs to be specially treated.

There are many ways to connect the ground wire of each circuit to the ground plane, including:

1. Single point grounding: the ground wire of all circuits is connected to the same point on the ground plane, which is divided into series single point grounding and parallel single point grounding.

2. Multipoint grounding: the ground wires of all circuits are grounded nearby, and the ground wires are short enough for high-frequency grounding.

3. Mixed grounding: single point grounding and multi-point grounding are used together.

In low frequency, SMAll power and the same power layer, single point grounding is the most appropriate, usually used in analog circuits; Generally, star connection is adopted to reduce the influence of possible series impedance. High frequency digital circuits need to be grounded in parallel. Generally, they can be handLED SIMply by means of grounding holes; Generally, all modules will use two kinds of grounding methods comprehensively, and use the mixed grounding method to complete the connection between the circuit ground wire and the ground plane.

Grounding mode of multilayer PCB (II)

If the whole plane is not selected as the common ground wire, for example, when the module itself has two ground wires, the ground plane needs to be divided, which often interacts with the power plane.

Pay attention to the following principles when grounding:

(1) Align all planes to avoid overlap between irrelevant power planes and ground planes, otherwise, all ground planes will be divided into invalid planes and interfere with each other;

(2) In the case of high frequency, the parasitic capacitance between layers through the circuit board will produce coupling;

(3) The signal lines between ground planes (such as digital ground plane and analog ground plane) are connected by ground bridges, and the nearest return path is configured through the nearest through-hole.

(4) Avoid unnecessary radiation caused by high-frequency routing such as time clock line near the isolated ground.

(5) The ring area formed by the signal line and its loop shall be as small as possible, which is also called the loop minimum rule; The smaller the ring area is, the less the external radiation is, and the smaller the external interference is received. During ground plane segmentation and signal routing, the distribution of ground plane and important signal routing shall be considered to prevent problems caused by ground plane slotting.

The above is the grounding mode of multilayer PCB in PCB design. It briefly introduces the grounding mode of multilayer PCB and several principles to be noted from two major aspects.
