The importance of drilling in PCB production process

The importance of drilling in PCB production process


Through hole (VIA) is used to conduct or connect copper foil lines between conductive patterns in different layers of the circuit board, but it is not allowed to insert copper plated holes of component legs or other reinforcement materials. Printed circuit board (PCB) is formed by stacking many copper foil layers. The reason why copper foil layers cannot communICate with each other is that each layer of copper foil is paved with an insulating layer, so they need to rely on via for signal link, so they have the Chinese name of via.

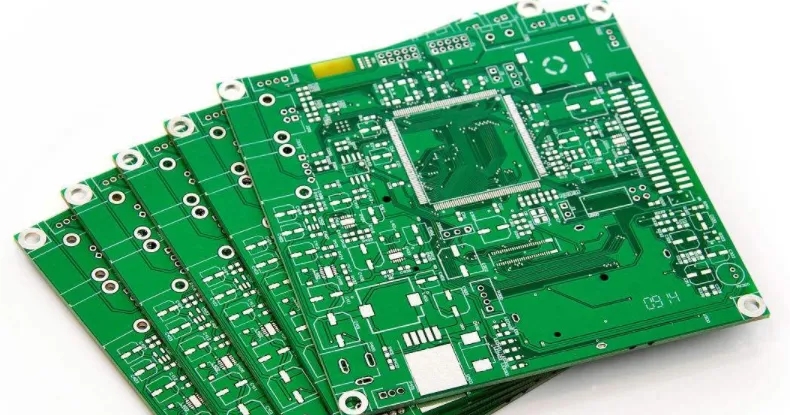

Printed circuit board


The through hole of the circuit board must pass through the plug hole to meet the customer's needs. In the process of changing the traditional aluminum plug hole process, the resistance welding and plug hole of the circuit board surface are completed by using the white MESh, making its production more stable, quality more reliable, and application more perfect. The through hole is helpful for the interconnection and conduction of circuits. With the rapid development of the electronic industry, higher requirements are put forward for the manufacturing process and surface mounting technology of printed circuit boards (PCBs).


Plug hole technology of through hole arises at the historic moment, and at the same time, the following requirements shall be met:

1. The hole only needs copper, and the resistance welding can be plugged or not plugged;

2. There must be tin and lead in the hole, with a certain thickness requirement (4um), to avoid solder resist ink entering the hole and causing tin beads in the hole;

3. The through hole must be provided with solder blocking ink plug hole, which is light tight, free of tin ring and tin bead, and must be flat.


Blind hole refers to the connection between the outermost circuit in the printed circuit board (PCB) and the adjacent inner layer with plated holes. Since the opposite side cannot be seen, it is calLED blind through. In order to increase the utilization of space between layers of a board circuit, blind holes are used. Blind hole is a through hole to the surface of printed board

The blind hole is located on the top layer and bottom layer of the circuit board, and has a certain depth. It is used to connect the surface layer circuit with the lower inner layer circuit. The depth of the hole generally has a specified ratio (aperture). This fabrication method requires special attention. The drilling depth must be just right. If not, it will cause electroplating difficulties in the hole. Therefore, few factories will adopt this production method. In fact, it is also possible to make the circuit layers that need to be connected in advance drill holes in individual circuit layers, and then glue them together, but it requires more precise positioning and alignment devices.


Buried hole refers to the connection between any circuit layers in a Printed Circuit Board (PCB), but it is not conductive to the outer layer, that is, there is no conductive hole extending to the surface of the PCB.


This manufacturing process cannot be achieved by drilling holes after bonding the circuit boards. Drilling operations must be carried out at the time of individual circuit layers. First, local bonding of the inner layer is followed by electroplating, and finally, all bonding is carried out. Since the operation process is more laborious than the original through hole and blind hole, the price is also the most expensive. This manufacturing process is usually only used for high-density circuit boards to increase the space utilization of other circuit layers.


In the production process of printed circuit board (PCB), drilling is very important. Drilling is SIMply understood as drilling the required through-hole on the CCL, which has the function of providing electrical connection and fixing components. If incorrect operation causes problems in the via process, the components cannot be fixed on the circuit board, which may affect the use of the circuit board, or even make the whole board scrapped, so the drilling process is very important.

PCB manufacturers, PCB designers and PCBA manufacturers explain the importance of drilling in PCB production process.
